DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1937 |
Pays | USA |
Designer(s) | SCHULTZ, Arthur B. |
Premier constructeur | SCHULTZ, Arthur, Detroit |
Type d'appareil | Planeur |
Fonction | Entraînement |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 14 m |
Longueur | -- |
Hauteur | -- |
Allongement | -- |
Surface alaire | 16.36 m2 |
Profil aile | -- |
Masse à vide | 136 kg |
Masse maxi | 213 kg |
Charge alaire | 13.1 kg/m2 |
Vitesse mini | -- |
Vitesse maxi | -- |
Finesse maxi | |
Taux de chute mini | 0.85 m/s |
Nb sièges | 1 |
Structure | Fuselage tubes d'acier entoilé. Ailes : bois et toile. |
Constructeur(s) |
| ||||||
Infos techniques | -- | ||||||

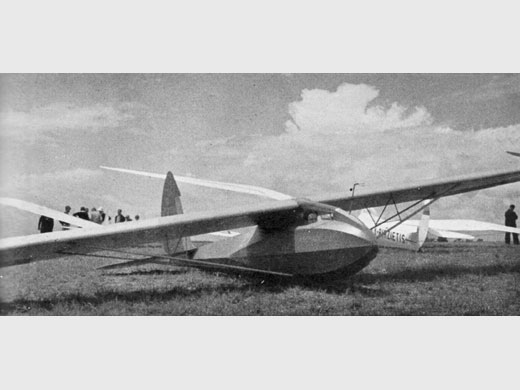

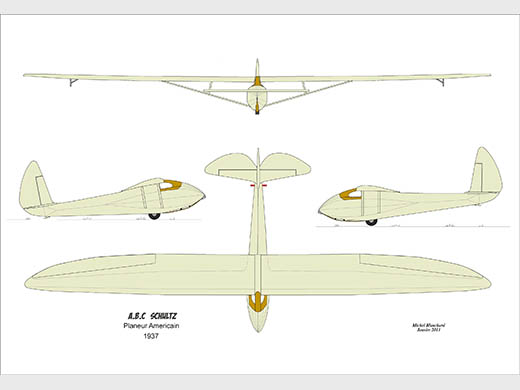

Histoire résumée | The ABC, a development of the simpler, shorter span Midwest MU-1 designed three years earlier, won the 1937 Eaton design competition. The result was due largely to its sound esign and ease of construction, while the much higher performing Ross-Stephens RS-1 Zanonia placed second due to complicated construction and emphasis on ground tow capability. The first all-metal Schweizer sailplane, the SGU-1-6, was third. The ABC was offered in plan form and a few were built prior to World War II. After the outbreak of war, one was used as the TG-16 at the USAAC glider training school in Mobile, Alabama. | ||||||
Liens personnalités | Pas de personnalité associée. | ||||||
Compléments docs |
Liens WEB | Site : Sailplane Directory . Schultz ABC (USAAC TG-16). (2009-12-30) Site : SmugMug . 3 photos. (2012-10-30 CL) Site : Wikipedia (en) . Notes + specs. (2012-10-30 CL) |
Livres | Der Segelflug im Wettbewerb der Völker par ZUERL, Hubert (1941) [p. 59, 80. Photo + mention]. |
Autres sources | Soaring juillet-août 1955 p 4. Photo avec Arthur Schultz. |
