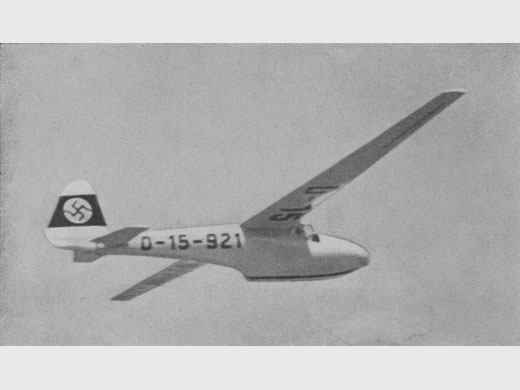

Akaflieg Stuttgart FS-16 Wippsterz
| DONNÉES GÉNÉRALES |
| Année du premier vol (ou de design, si seul projet) |
1937 |
| Pays | Allemagne |
| Designer(s) | Akaflieg Stuttgart |
| Premier constructeur | Akaflieg Stuttgart |
| Type d'appareil | Planeur |
| Fonction | Entraînement |
| SPÉCIFICATIONS TECHNIQUES |
| Envergure | 15.78 m |
| Longueur | 6.13 m |
| Hauteur | 2.14 m |
| Allongement | 18.5 |
| Surface alaire | 13.3 m2 |
| Profil aile | Emplanture NACA 2318, milieu NACA 2312, saumon NACA 2312 |
| Masse à vide | 150 kg |
| Masse maxi | 230 kg |
| Charge alaire | 17.5 kg/m2 |
| Vitesse mini | -- |
| Vitesse maxi | 120 km/h |
| Finesse maxi | 24 à 65 km/h |
| Taux de chute mini | 0.8 m/s à 55 km/h |
| Nb sièges | 1 |
| Structure | Bois et duralumin |
AUTRES INFORMATIONS
| Constructeur(s) |
| ||||||
| Infos techniques | Ailerons en Dural avec compensation | ||||||
| Histoire résumée | Premier vol en février 1937. When the Akaflieg developed the FS-16, they wanted to build a sailplane with good flight performance that was safe and simple to fly. Because of the need for this glider they had to do that without time consuming research and major innovations. Thus a self-supporting high wing glider with a wing span of 16m was designed. Because of the good experience with the lifted up rear fuselage of the F.1 this shape was retained. The wing tip panels of the "Fledermaus" didn't improve the flight qualities in the desired way so the fuselage was extended and built with a fin. The arrangement of skid and spur was modified to relief the fuselage during unclean landings. For a better efficiency the ailerons got a greater depth and their hinges were fixed directly to the spar. The ailerons are made of Dural-Aluminium to test light metal for use in sailplane construction. | ||||||
| Liens personnalités | Pas de personnalité associée. |
SOURCES DOCUMENTAIRES

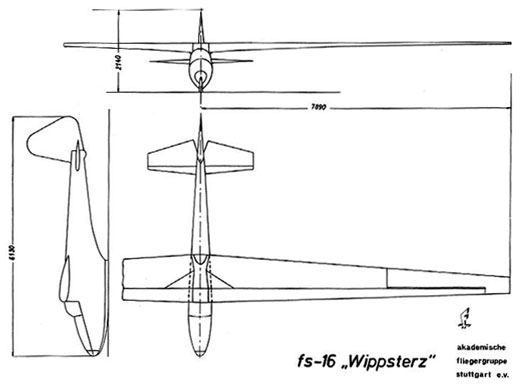

| Liens WEB | Site : Site Akaflieg Stuttgart . Une photo +plan 3 vues + specs. (2009-10-26 CL) Site : Luft Archiv . 2 photos. (2011-07-30 CL) |
| Livres | Flugzeug-Typenbuch 1944 par SCHNEIDER, Helmut (1944) [p. 300. Photo + specs]. |
MODÈLES RÉDUITS
| Pas de plan ou kit référencé. |
