Rubik R-07b Vöcsök

DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1937
Pays Hongrie
Designer(s) RUBIK, Ernõ
Premier constructeur Aero Ever Kft, Esztergom; Transylvanian Aircraft Plant, Nagyvárad (Oradea);
Type d'appareil Planeur
Fonction Initiation

SPÉCIFICATIONS TECHNIQUES
Envergure 11.6 m
Longueur 6.3 m
Hauteur--
Allongement8.97
Surface alaire15 m2
Profil aileGö 533 (11 %)
Masse à vide110 kg
Masse maxi195 kg
Charge alaire13 kg/m2
Vitesse mini--
Vitesse maxi110 km/h
Finesse maxi15
Taux de chute mini0.95 m/s à 52 km/h
Nb sièges1
Structure--

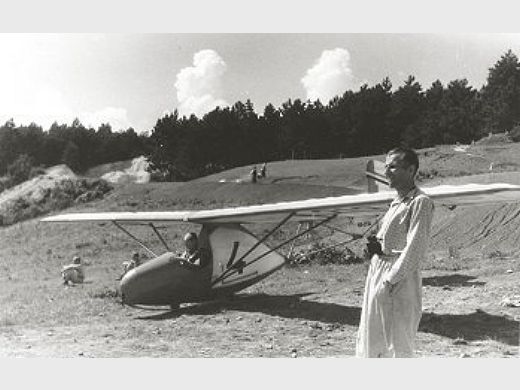

[via Hungarian Gliders]

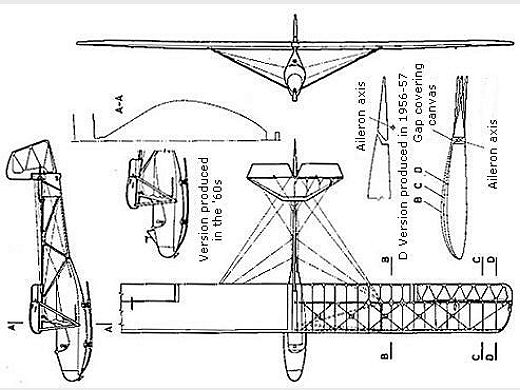

[via Hungarian Gliders]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Aero Ever Kft, Esztergom; Transylvanian Aircraft Plant, Nagyvárad (Oradea);300
Nombre total de constructions300
Infos techniquesVersion carénée du R-07a
Histoire résuméeThe Vöcsök was derived from the EMESE-B training glider the performance of which was to good for primary training purposes. The designation of the first prototype was R-05 Vöcsök, and she first flew in 1937. The prototype was bought at the demonstration by the Glider Training School of Károly Csermely, Gödöllõ. László Almásy and the Aero Club of Szentes ordered one-one Vöcsök on the spot as well. Almásy ordered the glider for the Aero Club of Egypt. This version was built with a steel pipe fuselage grid and later got the designation of R-06. She flew the first time in 1939. The serial production with some slight modifocations and new designation of R-07b started in 1938. First flight took place in 1938.
The newly established Transylvanian Aircraft Plant, Nagyvárad (Oradea) also built a series of 12 R-07b trainers in 1942-43.
The Experimental Aircraft Plant of the Hungarian Aeronautical Association, Dunakeszi, built a series of 30 gliders with modified ailerons after the war in 1955-56. This version got the designation of R-07d. Altogether about 350 Vöcsöks were built. They were in use up to the beginning of the 60s.
Liens personnalités Pas de personnalité associée.

SOURCES DOCUMENTAIRES

Liens WEBSite : Hungarian Gliders (site de Gábor Fekecs) . Texte + 4 photos + plan 3 vues + specs. Avec aussi une vidéo (2010-06-03 CL)
LivresPas de livre référencé.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 1659 [Dernière mise à jour : 2010-06-08]
