DONNÉES GÉNÉRALES |
Année du premier vol (ou de design, si seul projet) |
1932 |
Pays | URSS |
Designer(s) | MAKAYEV, A. & STEPANOV, G. |
Premier constructeur | A. MAKAYEV A. & STEPANOV G. (MAI students) |
Type d'appareil | Planeur |
Fonction | -- |
SPÉCIFICATIONS TECHNIQUES |
Envergure | 12 m |
Longueur | 5.5 m |
Hauteur | 1.4 m |
Allongement | 11.4 |
Surface alaire | 12.6 m2 |
Profil aile | CL-IV |
Masse à vide | 115 kg |
Masse maxi | 195 kg |
Charge alaire | 15.5 kg/m2 |
Vitesse mini | -- |
Vitesse maxi | 190 km/h |
Finesse maxi | 20 |
Taux de chute mini | 0.72 m/s |
Nb sièges | 1 |
Structure | Bois |
Constructeur(s) |
| ||||||

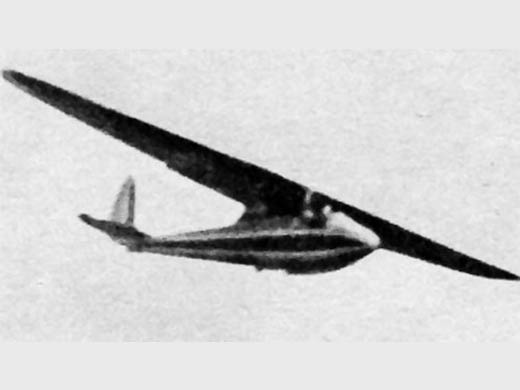

Infos techniques | The single-seat parasol monoplane had an open cockpit, all wooden structure, sparless wing covered by plywood and oval fuselage cross-section. The tail unit was conventional with elliptic surface contours. Landing gear consisted of a main and a tail skid. | ||||||
Histoire résumée | During the years of 1932-1934 the Aviation Scientific and Technical Society of the Moscow Aviation Institute (АНИТО-МАИ: Aviatsionnim Nauchnim Indzenierno-Tekhnitseskim Obtsestvom, Moskovskij Aviatsionnij Institut) designed and built three gliders: the "MAI-1" training glider, the "MAI-2" two-seater glider and the "MAI-3" light performance glider. All were built under the supervision of N. N. Fadeeva and N. F. Chekhonin. The "MAI-3" lightweight sailplane was designed by students A. Makayev and G. Stepanov. The testflights were done by D. Kosits. The glider had performed well and and it was decided to fly it to the Crimea to participate at the glider contest. However, the tow pilot Majewski and the pilot of " MAI-3", Yegorov, had to abandon the flight at Tula, as airframe vibration was experienced on the tail. After minor repairs the trip was continued and the "MAI-3" was able to participate in the Xth All-Union glider contest, which opened in Koktebel at September 1, 1934. | ||||||
Liens personnalités | Pas de personnalité associée. |

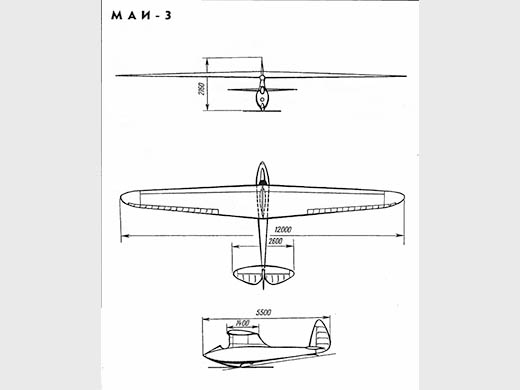

Liens WEB | Site : Site Уголок неба (Coin de Ciel / Sky Corner) . Texte + 1 photo + plan 3 vues + specs. (2023-12-24 CL) |
Livres | Entsiklopediia Planery Rossii par KRASILSHCHIKOV, A. P. (2005) [p. 327. Specs]. Летательные аппараты МАИ par MAKAROV, Youri Vasilievich (1994) []. |
