EoN Type 10 Eon 460/463

Autre nom (ou nom en langue originelle) : Eon Olympia 463
DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1963
Pays Angleterre
Designer(s) Elliotts of Newbury Ltd. (EoN)
Premier constructeur Elliotts of Newbury Ltd (EoN), Albert Works, Newbury, Berks
Type d'appareil Planeur
Fonction Performance

SPÉCIFICATIONS TECHNIQUES
Envergure--
Longueur--
Hauteur--
Allongement18
Surface alaire--
Profil aile--
Masse à vide--
Masse maxi286 kg
Charge alaire--
Vitesse mini--
Vitesse maxi--
Finesse maxi
Taux de chute mini--
Nb sièges1
StructureBois

[Pas de photo connue]

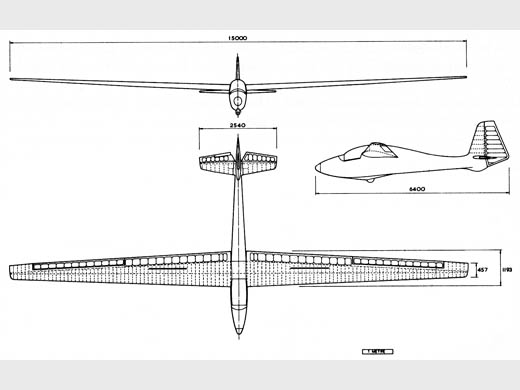

Plan 3 vues du Eon 460 [British Gliders and Sailplanes]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
Elliotts of Newbury Ltd (EoN), Albert Works, Newbury, Berks48
Nombre total de constructions48
Infos techniquesType 10 Eon 460 série D, mais avec un allongement de 18 et une masse maximale de 286 kg.
Histoire résuméeVersion de production de l'EoN Type 10 Eon 460, qui a débuté en 1963.
The British Elliots EON Type 463 soilplane. A CilPY of this type is to be :the British Standard Class errlry in the World Soaring Championships at Junin, Argentina, during February. Pilot will be Brig.·Gen. Anthony J. Deane-Drummond. A 463 was used by' A.
D. Piggott in winning the 1962 British Standard Class Championship. He felt he was able to compete on equal terms with the larger span Skylark 3's as well as having an easier time of it in all respects. especially ground handling. Each wing weighs less
..
than 100 pounds and the empty weight is only 380 lb. The horizontal tail can be unlocked and folded up 'alongside the fin.
Liens personnalités Pas de personnalité associée.
Exemplaires existants
Immatriculé : BGA-1334 BYE (En état de vol), localisation : Ringmer, East Sussex GC
Immatriculé : BWE (En état de vol), localisation : Angleterre ?
Pack(s) photosImmatriculation : BWE. Photographié par Chris Williams () sur Scale Soaring UK 11 photos, 790 ko

SOURCES DOCUMENTAIRES

Liens WEBPas de site référencé.
LivresBritish Gliders and Sailplanes 1922-1970
par ELLISON, Norman (1971) [p. 39, 119, 120, 249. Note + plan 3 vues + specs].
Autres sourcesSoaring février 1963 p 15. Note + photo.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 2825 [Dernière mise à jour : 2015-08-06]
