Oka

Autre nom (ou nom en langue originelle) : Baka
DONNÉES GÉNÉRALES
Année du premier vol
(ou de design, si seul projet)
1944
Pays Japon
Designer(s) --
Premier constructeur
Type d'appareil Planeur
Fonction Militaire

SPÉCIFICATIONS TECHNIQUES
Envergure 5 m
Longueur 6 m
Hauteur--
Allongement--
Surface alaire--
Profil aile--
Masse à vide--
Masse maxi1200 kg
Charge alaire--
Vitesse mini270 km/h
Vitesse maxi997 km/h
Finesse maxi
Taux de chute mini--
Nb sièges--
Structure--

[Saoring Magazine janvier-février 1954]
[Pas de plan 3 vues connu]

AUTRES INFORMATIONS

Constructeur(s)
ConstructeurConstruits
--
Nombre total de constructions--
Infos techniques--
Histoire résuméeCredit for building the fastest gliders in the world must go to the Japancse, who produced two in the closing months of World War II. When the Japanese began their suicide "Kamikaze" attacks on US warships, they used standard tactical aircraft loaded with high explosives. These were relatively large and slow, and made good targets for defending fighters and anti-aircraft, so something more elusive had to be developed. This turned out to be the tiny piloted missile that was carried by a bomber and released some distance from the target, completing the one-way trip under the control of the human pilot. This device was named "Baka" (Japanese for " Fool" ) by the Allies and "Oka" by the Japanese.
The Oka had a wingspan of only sixteen and one-hall feet and carried 264O pounds of explosive in its 20 foot fuselage. Three liquid rocket motors in the tail gave it an impact velocity of 620 mph, although its normal glider speed was only 230 mph. It was necessary to get performance and operational data on the OKA before sending it into action, so a test program was inaugurated.
A number of OkAs were built as unpowered trainers, with a block of cast iron in an elongated nose replacing the warhead, the rocket tubes deleted and the tail cone faired over, and a few extra flight instruments. Major outward changes were the addition of flaps and a king-size landing skid. This had to be strong, for even with the flaps and light load, the landing speed of this tiny glider was estimated at something over 170 mph !
Liens personnalités Pas de personnalité associée.

SOURCES DOCUMENTAIRES

Liens WEBPas de site référencé.
LivresPas de livre référencé.

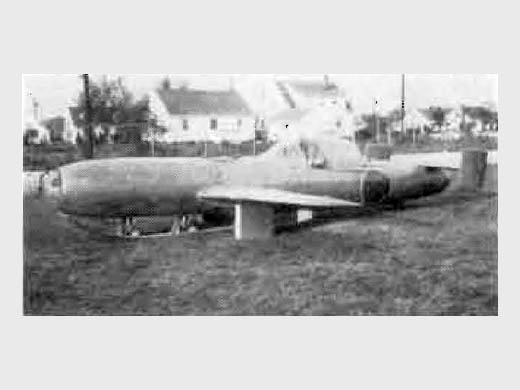

Autres sourcesSoaring janvier-février 1954 p 15. Note + photo.

MODÈLES RÉDUITS

Pas de plan ou kit référencé.
Fiche n° 3313 [Dernière mise à jour : 2011-04-09]
