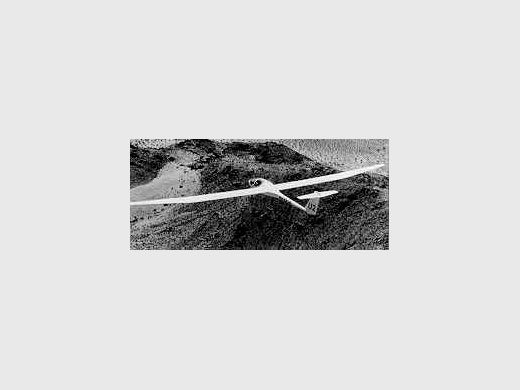

Caproni A-21
| DONNÉES GÉNÉRALES |
| Année du premier vol (ou de design, si seul projet) |
1970 |
| Pays | Italie |
| Designer(s) | FERRARIN, Carlo & SONZIO, Livio |
| Premier constructeur | Caproni Vizzola Ticino |
| Type d'appareil | Planeur |
| Fonction | Performance |
| SPÉCIFICATIONS TECHNIQUES |
| Envergure | 20.38 m |
| Longueur | 7.73 m |
| Hauteur | -- |
| Allongement | 25.65 |
| Surface alaire | 16.19 m2 |
| Profil aile | FX 67K-170 (partie centrale) FC 60-126 (parties extérieures) |
| Masse à vide | 424 kg |
| Masse maxi | 644 kg |
| Charge alaire | 39.77 kg/m2 |
| Vitesse mini | -- |
| Vitesse maxi | -- |
| Finesse maxi | 43 |
| Taux de chute mini | -- |
| Nb sièges | 2 |
| Structure | Fuselage fibre de verre et métal. Ailes métalliques. |
AUTRES INFORMATIONS
| Constructeur(s) |
| ||||||
| Infos techniques | Biplace côte à côte. Empennage en T. Stabilisateur pendulaire. | ||||||
| Histoire résumée | Caproni (which built its first glider in 1908 at Vizzola Ticino, Italy ) produced the first A-21 in 1970, and within two years had collected four world multi-place sailplane speed and distance records with it. A 2-place all-metal ship with a fiberglass forward fuselage, the A-21 was followed into production by the slightly improved S model for which the accompanying data is given. The ship features a roomy side-by-side cockpit and widely spaced retractable twin landing wheels. Aft-hinged brakes on the lower surface, and these, with large flaps (which deflect to +89 degrees) limit speed in a vertical five to 188 kph / 102 kt / 117 mph. The T-tail is all moving. A steerable tail wheel and water ballast were optional. The jet powered A-21SJ has self-launch capabillity and a service ceiling of 10.973 m. / 36,000 ft. Specifications in parenthesis refer to the A-21 SJ. Text from Aerokurier July '97: Caproni Calif A-21S: Flying for two The origin of the metal-construction Calif A-21S goes back more than 25 years. Still, the performance two-seater, by far, does not belong to the scrap-heap. As a true alternative for two-seat flying, the Calif is currently being small-series produced (6 aircraft) at the Gomolzig Flugzeug- und Maschinenbau. The Calif really offers a new quality for joint gliding, the pilots sitting side-by-side, shoulder by shoulder. The Italian construction offers good performance (comparable to Janus C) and good flying characteristics, giving the aircraft a broad range of applications reaching from advanced training and guest flights up to performance flights. Only for competition flights in the double-seater class, it is exceeding the 20-meter definition by a few centimeters. The Calif is a real alternative in the performance two-seater class, giving joint flying a new quality. Also, the aircraft offers an attractive price. The A-21S costs approximately 20000 Marks less than a Duo Discus. The demonstration aircraft is being offered for DM14000, including VAT and with a very good instrumentation (Peschges VP7). See also http://www.geocities.com/Pipeline/2550/ The official The Official Tapis Volant Home Page | ||||||
| Liens personnalités | Pas de personnalité associée. |
SOURCES DOCUMENTAIRES
| Liens WEB | Pas de site référencé. |
| Livres | Alianti italiani par PAJNO, Vittorio (2000) [p. 22. ]. |
MODÈLES RÉDUITS
| Pas de plan ou kit référencé. |
Fiche n° 332 [Dernière mise à jour : 2012-02-07]
